Alloy Steel WP9 Pipe Fittings Manufacturer, Supplier in India

Gururaj Infradesigns is a trusted Alloy Steel WP9 Pipe Fittings Manufacturer in India offering ASTM A234 WP9 / ASME SA234 fittings in seamless, welded, and fabricated forms for power generation, refineries, petrochemical plants, and severe high-temperature applications requiring superior oxidation resistance.

Home / Pipe Fittings / Alloy Steel Pipe Fittings /

ASTM A234 WP9 Pipe Fittings

Alloy Steel WP9 Pipe Fittings Manufacturer in India

Alloy Steel WP9 Pipe Fittings are high-performance chromium-molybdenum fittings specifically designed for elevated temperature and pressure applications. With higher chromium and molybdenum content than conventional alloy steel grades, these fittings offer exceptional oxidation resistance, creep strength, and long-term stability under severe operating conditions. Gururaj Infradesigns is a ASTM A234 WP9 Pipe Fittings Manufacturer in India, supplying premium-quality fittings for power generation, refineries, petrochemical plants, and process industries.

Our range includes elbows, tees, reducers, pipe caps, stub ends, and crosses available in seamless, welded, and fabricated construction. Manufactured to international standards, ASTM A234 WP9 Pipe Fittings are engineered to provide dependable performance in critical high-temperature piping systems.

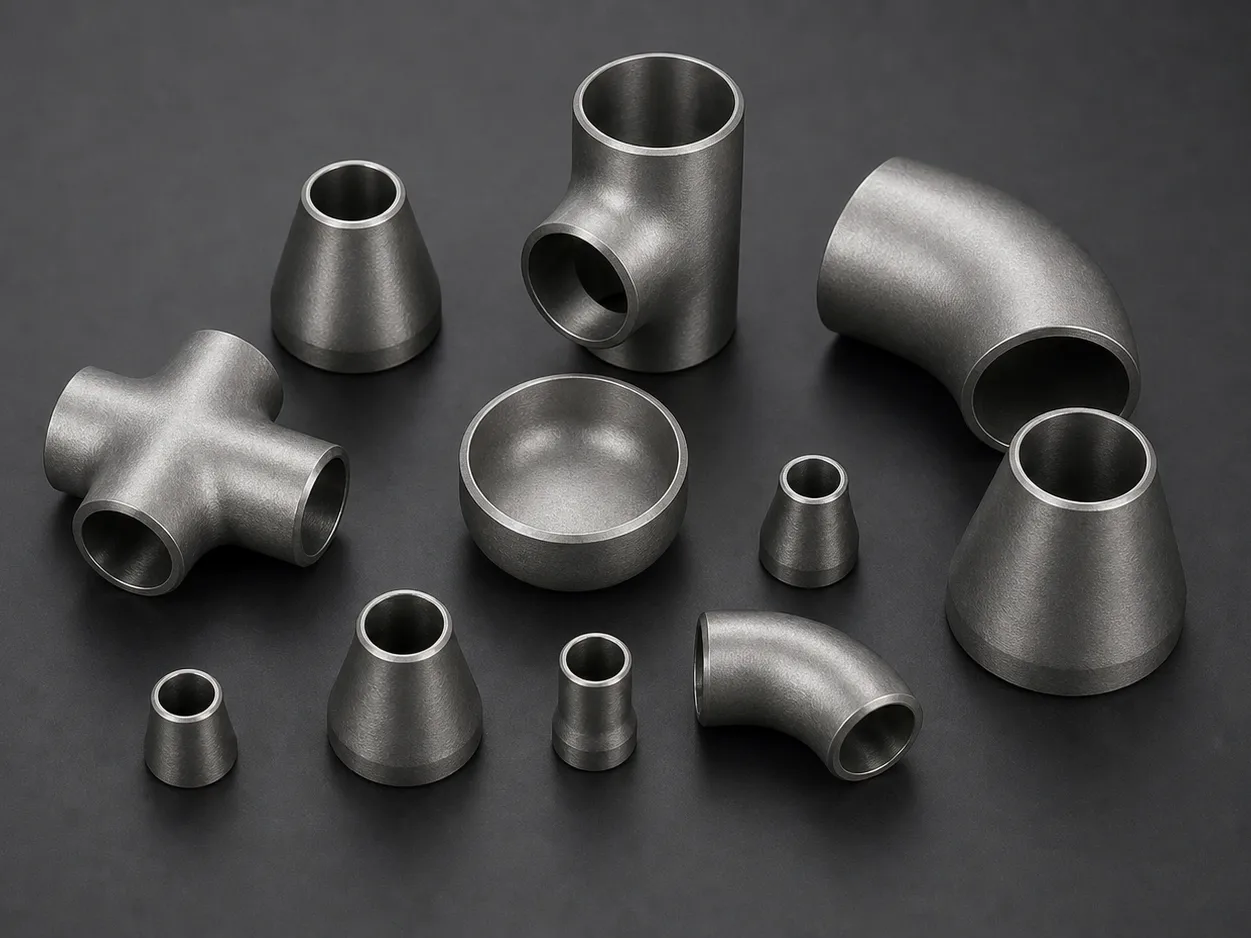

ASTM A234 WP9 Alloy Steel Pipe Fittings for Severe High Temperature Service

Understanding ASTM A234 WP9 Pipe Fittings

ASTM A234 WP9 is a chromium-molybdenum alloy steel grade containing approximately 8–10% chromium and 0.90–1.10% molybdenum. This composition provides superior resistance to oxidation, scaling, and thermal fatigue, making it ideal for demanding environments where standard carbon steel fittings may not perform effectively.

As part of our extensive range of Alloy Steel Pipe Fittings, ASTM A234 WP9 fittings are widely used in steam pipelines, superheater systems, heat exchangers, and refinery processing units where reliability at elevated temperatures is essential.

ASTM A234 WP9 Pipe Fittings Specifications

Parameter Details
Product Alloy Steel WP9 Pipe Fittings
Grade ASTM A234 WP9
Specifications ASTM A234 / ASME SA234
Designation ASTM A234, ASME SA234 WP9
Dimensions ASME/ANSI B16.9, B16.28, MSS-SP-43
Product Types Elbow, Tee, Reducer, Pipe Cap, Stub End, Cross
Size Range 1/8" NB – 48" NB
Type Seamless / Welded / Fabricated
Thickness SCH 5S, 10S, 40S, 80S, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
Custom Thickness Up to 50 mm
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Certification EN 10204 3.1 / MTC Available

Equivalent Grades of ASTM A234 WP9 Pipe Fittings

Grade ASTM / ASME UNS Number Chromium Content Molybdenum Content
WP9 ASTM A234 / ASME SA234 K90941 8.00 – 10.00% 0.90 – 1.10%

Equivalent grade references help engineers and procurement teams identify compatible materials across project specifications and international standards, ensuring accurate material selection and application suitability.

Benefits of Using Alloy Steel WP9 Pipe Fittings

Superior High-Temperature Performance

ASTM A234 WP9 Pipe Fittings retain excellent mechanical strength and dimensional stability even during prolonged exposure to elevated temperatures. This makes them suitable for critical applications where thermal reliability is essential.

Excellent Oxidation Resistance

The higher chromium content significantly improves resistance to oxidation and scaling. This helps maintain the integrity of piping systems operating in severe heat environments.

Enhanced Creep Strength

The chromium-molybdenum composition provides excellent resistance to creep deformation under continuous stress, ensuring long-term performance in demanding industrial conditions.

Reliable Performance in Pressure Systems

WP9 fittings are capable of handling high-pressure process conditions while maintaining their structural properties, making them ideal for power and refinery applications.

Extended Service Life

Their resistance to heat-related degradation and mechanical wear reduces maintenance requirements and contributes to lower lifecycle costs over time.

Chemical Composition of ASTM A234 WP9 Pipe Fittings

Element Composition (%)
Carbon 0.15 Max
Manganese 0.30 – 0.60
Phosphorus 0.025 Max
Sulfur 0.025 Max
Silicon 0.50 Max
Chromium 8.00 – 10.00
Molybdenum 0.90 – 1.10

Mechanical Properties of ASTM A234 WP9 Pipe Fittings

Property Value
Tensile Strength 415 MPa Min
Yield Strength 205 MPa Min
Elongation 20% Min
Hardness 121 – 179 HB

Common Applications of Alloy Steel WP9 Pipe Fittings

Power Generation Plants

WP9 Pipe Fittings are widely used in superheater tubes, steam piping, reheater systems, and high-temperature utility lines where excellent thermal stability is required for continuous operation.

Petrochemical Industries

These fittings are suitable for handling high-temperature hydrocarbons and process fluids in petrochemical plants, ensuring reliable performance under demanding service conditions.

Oil Refineries

ASTM A234 WP9 Pipe Fittings are commonly installed in refinery process piping, catalytic units, and heat transfer systems exposed to continuous heat and pressure. Their durability makes them suitable for critical refinery operations where operational uptime is essential.

Industrial Furnace Systems

The high chromium content of WP9 provides outstanding resistance to scaling and oxidation, making these fittings ideal for industrial furnaces, heat treatment plants, and thermal processing equipment operating at elevated temperatures.

Heat Exchanger Applications

WP9 fittings are frequently used in heat exchangers and thermal transfer systems where consistent performance under prolonged exposure to heat is required. Their ability to maintain mechanical integrity helps improve overall system efficiency and service life.

ASTM A234 WP9 vs Other Alloy Steel Grades

Selecting the appropriate alloy steel grade depends on service temperature, oxidation requirements, and the operating environment. ASTM A234 WP9 Pipe Fittings are often preferred for severe heat applications due to their higher chromium content.

Property ASTM A234 WP9 ASTM A234 WP5
Chromium Content 8.00 – 10.00% 4.00 – 6.00%
Molybdenum Content 0.90 – 1.10% 0.45 – 0.65%
High-Temperature Resistance Superior Excellent
Oxidation Resistance Superior Excellent
Typical Applications Furnace Systems, Severe Heat Service Refineries, Steam Lines
Relative Cost Higher Moderate

ASTM A234 WP9 Pipe Fittings are ideal for applications involving more aggressive thermal environments and prolonged exposure to elevated temperatures. In comparison, ASTM A234 WP5 Pipe Fittings offer a balance between heat resistance and cost-effectiveness, making them suitable for general refinery and steam service applications.

Available Surface Finishes for WP9 Pipe Fittings

Finish Benefits
Black Finish Standard industrial finish for general applications
Shot Blasted Improves surface cleanliness
Pickled Removes scale and contaminants
Painted Protects during storage and transportation

Proper finishing enhances product integrity and ensures readiness for installation.

Supporting Industrial Pipe Fitting Requirements

Gururaj Infradesigns supplies Alloy Steel WP9 Pipe Fittings in various sizes, schedules, and configurations to support power generation, refinery, petrochemical, and industrial projects. Our products are supplied to EPC contractors, fabricators, consultants, and industrial buyers across India.

With a commitment to quality, technical support, and timely delivery, we help customers source dependable alloy steel piping components tailored to their project requirements.

Quality Assurance for ASTM A234 WP9 Pipe Fittings

Quality remains a key aspect of our manufacturing and supply process. Every fitting undergoes inspection for dimensional accuracy, material conformity, and workmanship before dispatch.

As an ISO Certified Company, we are committed to delivering reliable piping solutions that consistently meet international quality standards and customer expectations.

FAQs

ASTM A234 WP9 is a chromium-molybdenum alloy steel grade used for manufacturing buttweld pipe fittings intended for elevated temperature and pressure service applications.

These are buttweld fittings manufactured from ASTM A234 WP9 alloy steel and are commonly used in power plants, refineries, petrochemical facilities, and furnace systems.

The "WP" designation refers to wrought pipe fittings, while "9" identifies the alloy composition containing approximately 8–10% chromium and 0.90–1.10% molybdenum.

WP9 contains higher chromium and molybdenum levels, providing enhanced oxidation resistance and better performance in severe high-temperature environments.

Yes. We supply ASTM A234 WP9 Pipe Fittings to customers across Mumbai, Chennai, Ahmedabad, Pune, Vadodara, Hyderabad, Bengaluru, and other major industrial cities in India.

Need Technical Assistance?

Selecting the right alloy steel grade requires careful consideration of operating temperatures, pressure conditions, and environmental factors. Choosing the appropriate fitting material helps maximize equipment reliability, safety, and service life. Our team can assist in selecting the most suitable WP9 fitting type, size, and specification based on your application requirements. We work closely with engineers, EPC contractors, consultants, and industrial buyers to provide practical guidance and dependable piping solutions for critical industrial applications.
