Alloy Steel WP5 Pipe Fittings Manufacturer, Supplier in India

Gururaj Infradesigns is a trusted Alloy Steel WP5 Pipe Fittings Manufacturer in India offering ASTM A234 WP5 / ASME SA234 fittings in seamless, welded, ERW, and fabricated forms for refineries, power plants, petrochemical industries, and high-temperature piping applications.

Home / Pipe Fittings / Alloy Steel Pipe Fittings /

ASTM A234 WP5 Pipe Fittings

Alloy Steel WP5 Pipe Fittings Manufacturer in India

Alloy Steel WP5 Pipe Fittings are chromium-molybdenum alloy fittings designed for elevated temperature and moderate pressure applications where strength, oxidation resistance, and long-term reliability are critical. These fittings are widely used in refineries, petrochemical plants, power generation facilities, and process industries handling high-temperature fluids and steam. Gururaj Infradesigns is a trusted ASTM A234 WP5 Pipe Fittings Manufacturer in India, supplying premium-quality fittings manufactured to international standards.

Our product range includes elbows, tees, reducers, pipe caps, stub ends, and crosses available in seamless, welded, ERW, and fabricated construction. Manufactured from ASTM A234 WP5 alloy steel, these fittings provide dependable performance in demanding industrial environments where resistance to heat and mechanical stress is essential.

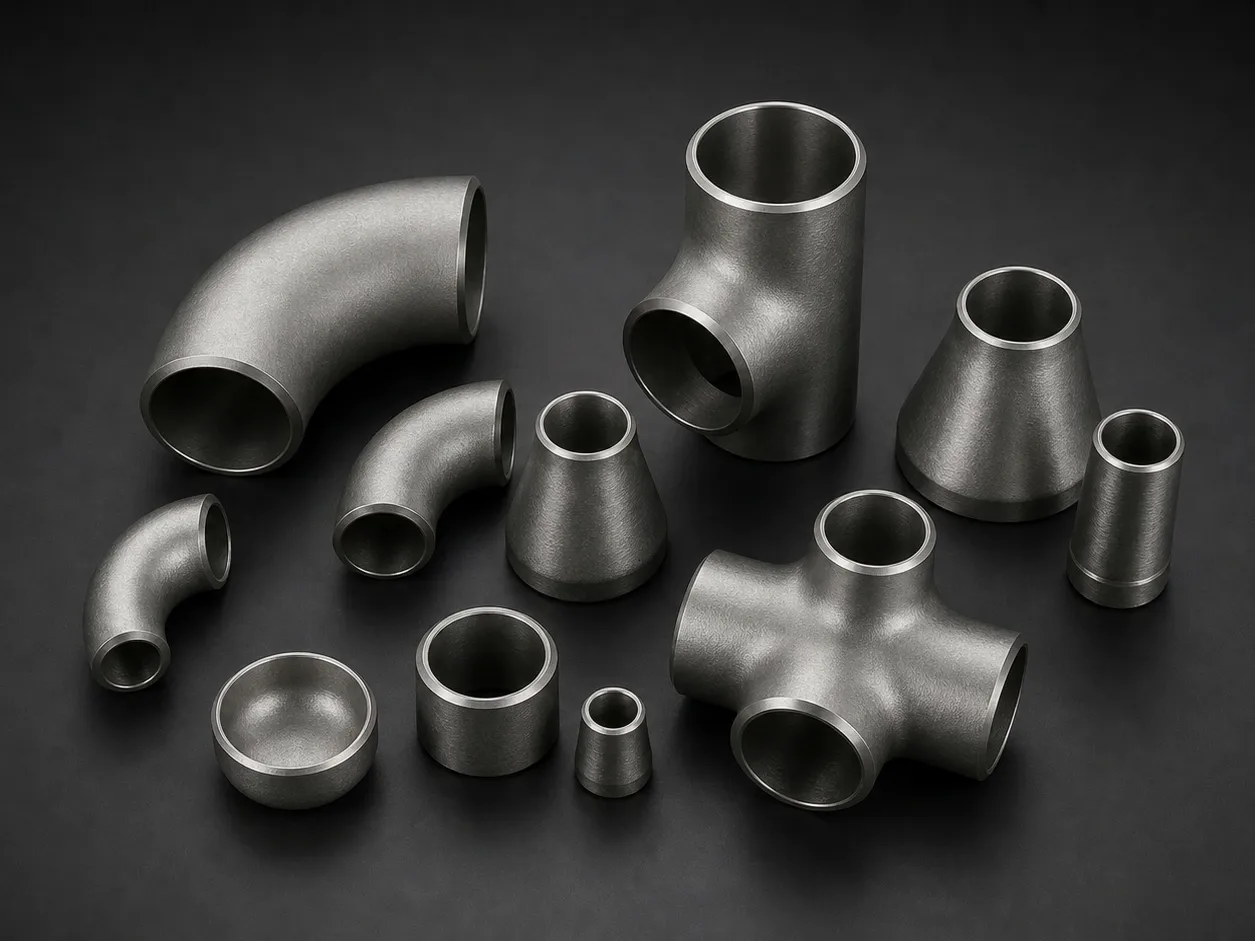

ASTM A234 WP5 Alloy Steel Pipe Fittings for High Temperature Applications

Understanding ASTM A234 WP5 Pipe Fittings

ASTM A234 WP5 is a chromium-molybdenum alloy steel grade containing approximately 5% chromium and 0.5% molybdenum. The addition of chromium enhances oxidation and corrosion resistance, while molybdenum improves high-temperature strength and creep resistance. These properties make WP5 Pipe Fittings suitable for applications involving elevated temperatures and pressure conditions.

As part of our comprehensive range of Alloy Steel Pipe Fittings, ASTM A234 WP5 fittings are commonly used in boiler systems, steam pipelines, power plants, and refinery operations where durability and long service life are essential.

ASTM A234 WP5 Pipe Fittings Specifications

Parameter Details
Product Alloy Steel WP5 Pipe Fittings
Grade ASTM A234 WP5
Specifications ASTM A234 / ASME SA234
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10
Product Types Elbow, Tee, Reducer, Pipe Cap, Stub End, Cross
Seamless Size 1/2" – 10"
Welded Size 1/2" – 48"
General Size Range 1/8" NB to 48" NB
Fittings Size DN15 – DN1200
Type Seamless / ERW / Welded / Fabricated
Thickness SCH 5S, 10S, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
NACE Compliance Available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Certification EN 10204 3.1 / MTC Available

Equivalent Grades of ASTM A234 WP5 Pipe Fittings

Grade ASTM / ASME UNS Number Chromium Content Molybdenum Content
WP5 ASTM A234 / ASME SA234 K41545 4.00 – 6.00% 0.45 – 0.65%

Equivalent grade references help engineers and procurement teams identify the same material across project specifications and international standards, ensuring proper material selection and compatibility.

Benefits of Using Alloy Steel WP5 Pipe Fittings

Excellent High-Temperature Strength

Alloy Steel WP5 Pipe Fittings retain their mechanical strength and structural stability even under elevated temperatures. This makes them a dependable choice for steam lines, heat exchangers, and high-temperature process piping systems operating continuously under demanding conditions.

Good Oxidation Resistance

The chromium content in ASTM A234 WP5 provides excellent resistance to oxidation and scaling at higher temperatures. This helps extend service life and reduces the risk of material degradation in refinery and thermal processing applications.

Enhanced Creep Resistance

The addition of molybdenum improves the alloy's ability to withstand prolonged exposure to stress and heat without deformation. As a result, WP5 fittings deliver reliable long-term performance in critical industrial environments.

Suitable for Pressure Applications

ASTM A234 WP5 Pipe Fittings are designed to perform efficiently in moderate to high-pressure systems. Their combination of strength and toughness makes them suitable for power plants, petrochemical units, and industrial process pipelines.

Long Service Life

With excellent heat resistance, durability, and mechanical reliability, WP5 fittings require less frequent replacement and maintenance. This contributes to lower lifecycle costs and improved operational efficiency for end users.

Alloy Steel WP5 Pipe Fittings Chemical Composition

C (%) Mn (%) P (%) S (%) Si (%) Mo (%)
0.28 Max 0.30 – 0.90 0.045 Max 0.045 Max 0.10 – 0.50 0.44 – 0.65 Max

Mechanical Properties of ASTM A234 WP5 Pipe Fittings

Property Value
Tensile Strength 415 MPa Min
Yield Strength 220 MPa Min
Elongation 20% Min
Hardness 121 – 174 HB

Common Applications of Alloy Steel WP5 Pipe Fittings

Power Generation Plants

Alloy Steel WP5 Pipe Fittings are extensively used in boilers, superheaters, steam headers, and high-temperature steam distribution systems. Their ability to withstand heat and pressure makes them ideal for critical power plant operations.

Petrochemical Facilities

These fittings are commonly installed in petrochemical processing units handling hot hydrocarbons and process fluids. Their oxidation resistance and mechanical strength help ensure safe and efficient plant performance.

Oil Refineries

Refineries utilize ASTM A234 WP5 Pipe Fittings in process piping, catalytic units, and heat transfer systems exposed to elevated temperatures. Their durability helps minimize maintenance and improve operational reliability.

Industrial Heating Systems

WP5 fittings are suitable for industrial furnaces, thermal fluid pipelines, and heating equipment where resistance to thermal stress and prolonged service conditions is required for uninterrupted operation.

Process Industries

Various chemical and manufacturing industries rely on Alloy Steel WP5 Pipe Fittings for piping systems operating under demanding temperature and pressure conditions, ensuring dependable long-term performance and service life.

ASTM A234 WP5 vs Other Alloy Steel Grades

Property ASTM A234 WP5 ASTM A234 WP9
Chromium Content 4.00–6.00% 8.00–10.00%
Molybdenum Content 0.45–0.65% 0.90–1.10%
High-Temperature Resistance Excellent Superior
Oxidation Resistance Excellent Superior
Pressure Handling Capability High High
Typical Applications Refineries, Steam Lines, Petrochemical Plants Severe Heat Service, Furnace Systems
Relative Cost Moderate Higher

ASTM A234 WP5 Pipe Fittings are widely used in refinery, petrochemical, and steam applications where a balance of performance and cost is important. In comparison, ASTM A234 WP9 Pipe Fittings contain higher chromium and molybdenum content, offering improved oxidation resistance and suitability for more demanding high-temperature environments. The choice between the two ultimately depends on the operating conditions and temperature requirements of the application.

Available Surface Finishes for WP5 Pipe Fittings

Finish Benefits
Black Finish Standard industrial finish suitable for most applications
Shot Blasted Improves surface cleanliness and appearance
Pickled Removes surface contaminants
Painted Provides temporary protection during storage and transit

Proper surface preparation helps maintain product integrity and supports installation readiness.

Supporting Industrial Pipe Fitting Requirements

Gururaj Infradesigns supplies Alloy Steel WP5 Pipe Fittings in multiple sizes, schedules, and configurations to support refinery, power generation, petrochemical, and industrial projects. Our products are supplied to EPC contractors, fabricators, engineering consultants, and industrial buyers across India.

With a focus on quality, timely delivery, and technical support, we help customers source dependable alloy steel piping components that align with project specifications and operational demands.

Quality Assurance for ASTM A234 WP5 Pipe Fittings

Quality remains an integral part of our manufacturing and supply process. Every fitting undergoes inspection for dimensional accuracy, material conformity, and workmanship before dispatch.

As an ISO Certified Company, we are committed to supplying reliable piping solutions that consistently meet industrial quality standards and customer expectations.

FAQs

ASTM A234 WP5 is a chromium-molybdenum alloy steel grade used for manufacturing buttweld pipe fittings intended for moderate and high-temperature service applications.

These are buttweld fittings manufactured from ASTM A234 WP5 alloy steel and are commonly used in refineries, power plants, and petrochemical facilities.

The "WP" designation refers to wrought pipe fittings, while "5" indicates the alloy composition containing approximately 5% chromium and 0.5% molybdenum.

WP5 contains higher chromium content, offering improved oxidation resistance and better performance in elevated temperature environments compared to WP11.

Yes. We supply ASTM A234 WP5 Pipe Fittings to customers across Mumbai, Chennai, Ahmedabad, Pune, Vadodara, Hyderabad, Bengaluru, and other major industrial cities in India.

Need Technical Assistance?

Selecting the right alloy steel grade depends on operating temperatures, pressure ratings, and process conditions. Choosing the correct fitting material helps improve plant efficiency, operational safety, and equipment longevity. Our team can assist in selecting the most suitable WP5 fitting type, size, and specification based on your project requirements. We work closely with engineers, consultants, EPC contractors, and industrial buyers to provide practical guidance and dependable piping solutions for critical industrial applications.
