Stainless Steel 904L Pipe Fittings

Stainless Steel 904L Pipe Fittings Manufacturer in India

Stainless Steel 904L Pipe Fittings are premium-grade piping components designed for highly corrosive environments where conventional stainless steel grades may not provide sufficient resistance. With a high nickel, chromium, molybdenum, and copper content, Grade 904L offers exceptional protection against pitting, crevice corrosion, and acidic media. Gururaj Infradesigns is a trusted Stainless Steel 904L Pipe Fittings Manufacturer in India, supplying high-quality fittings for critical industrial applications.

Our product range includes elbows, tees, reducers, pipe caps, stub ends, and crosses manufactured to meet stringent quality standards and project specifications. These fittings are widely used in chemical processing, fertilizer plants, offshore installations, power generation facilities, and industrial systems handling aggressive process media.

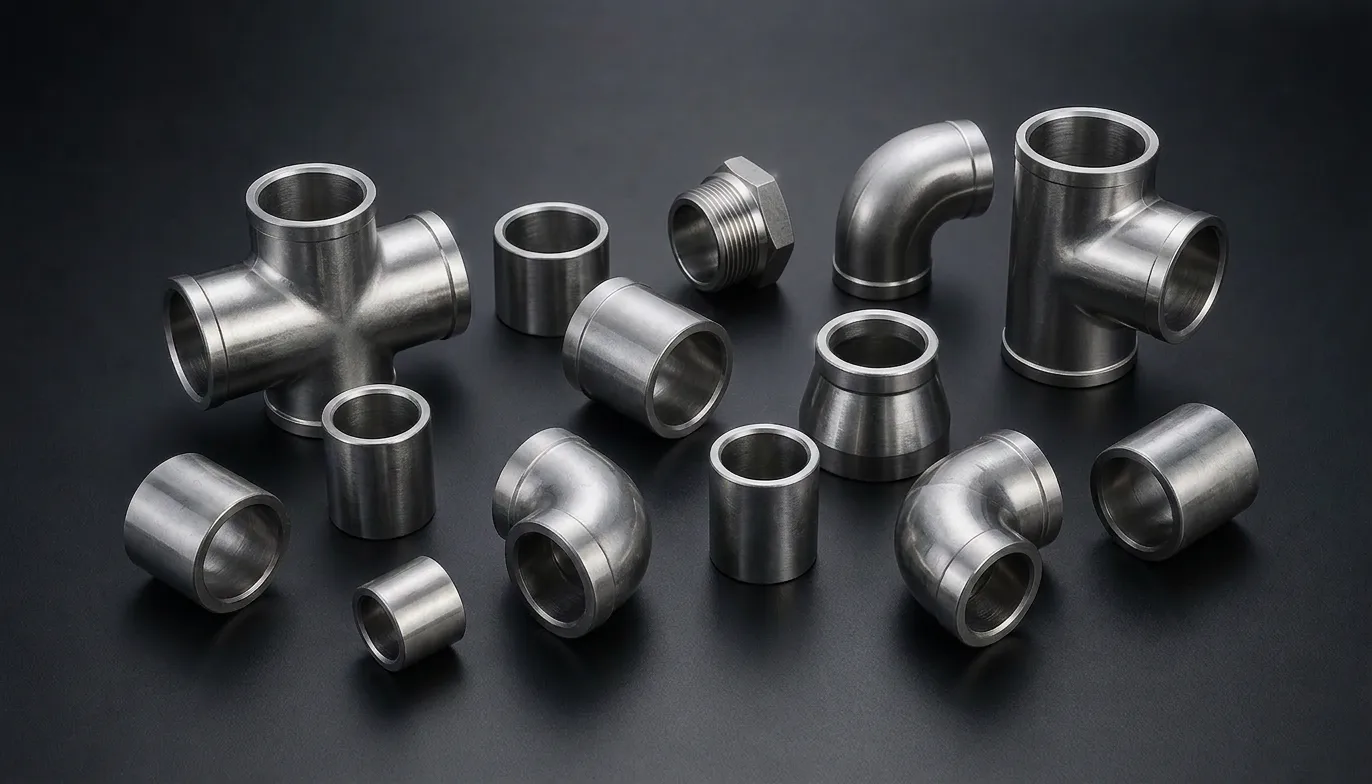

Stainless Steel 904L Pipe Fittings for Chemical Processing and Corrosive Industrial Applications

About Stainless Steel 904L Pipe Fittings

Stainless Steel 904L is a low-carbon, high-alloy austenitic stainless steel grade developed for applications requiring superior corrosion resistance. The alloy is particularly effective in environments containing sulfuric acid, phosphoric acid, chlorides, and other aggressive chemicals where standard stainless steel grades may experience rapid deterioration. As part of the broader range of Stainless Steel Pipe Fittings, Grade 904L is widely selected for critical process systems operating under demanding conditions.

Stainless Steel 904L Pipe Fittings combine excellent corrosion resistance with good mechanical strength and fabrication properties. Their ability to withstand severe chemical exposure helps improve system reliability, reduce maintenance requirements, and extend service life in challenging industrial environments.

Stainless Steel 904L Pipe Fittings Specifications

Parameter Details
Material Grade ASTM A403 WP904L
Product Types Elbow, Tee, Reducer, Pipe Cap, Stub End, Cross
Standards ASTM, ASME, ANSI, MSS SP
Size Range ½" NB to 48" NB
Schedule Range SCH 10 to SCH XXS
Manufacturing Process Seamless & Welded
Connection Type Butt Weld
Testing PMI, Hydro Test, Visual Inspection
Certification EN 10204 3.1 / MTC Available

Advantages of Stainless Steel 904L Pipe Fittings

Exceptional Corrosion Resistance

Stainless Steel 904L provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. This makes it highly suitable for applications involving aggressive chemicals and chloride-containing environments.

Excellent Performance in Acidic Media

The alloy performs exceptionally well in sulfuric acid, phosphoric acid, and various chemical processing environments. Its resistance to acidic attack helps improve equipment longevity and operational reliability.

Enhanced Resistance to Chlorides

The high nickel and molybdenum content improves protection against chloride-induced corrosion. This makes Grade 904L a preferred material for offshore and marine-related applications.

Good Fabrication & Weldability

Despite its high alloy content, Stainless Steel 904L offers good weldability and fabrication characteristics, making it suitable for complex industrial piping systems.

Long Service Life

The combination of superior corrosion resistance and mechanical durability helps reduce maintenance requirements and supports long-term system performance.

Chemical Composition

Element Composition (%)
Carbon Max 0.02
Chromium 19.0 – 23.0
Nickel 23.0 – 28.0
Molybdenum 4.0 – 5.0
Copper 1.0 – 2.0
Manganese Max 2.0
Silicon Max 1.0
Phosphorus Max 0.045
Sulfur Max 0.035

Mechanical Properties

Property Value
Tensile Strength 490 MPa Min
Yield Strength 220 MPa Min
Elongation 35% Min
Hardness 90 HRB Max

Common Applications of Stainless Steel 904L Pipe Fittings

Chemical Processing Plants

Stainless Steel 904L Pipe Fittings are widely used in chemical processing facilities handling corrosive acids and aggressive process fluids. Their superior corrosion resistance helps ensure safe and reliable operation.

Fertilizer Industries

These fittings are commonly installed in fertilizer production plants where exposure to acidic chemicals and corrosive environments requires durable piping components.

Offshore & Marine Installations

The excellent resistance to chloride attack makes Grade 904L suitable for offshore platforms, coastal facilities, and marine process systems operating in harsh environments.

Power Generation Facilities

Power plants utilize Stainless Steel 904L Pipe Fittings in systems requiring dependable corrosion resistance and long-term operational performance.

Comparing Stainless Steel 904L with Other Pipe Fitting Grades

Grade Key Characteristics Typical Applications
SS 304 General corrosion resistance Food Processing, General Industry
SS 316 Enhanced chloride resistance Marine, Chemical Processing
SS 904L Superior resistance to acids and aggressive chemicals Chemical Plants, Fertilizer Industries
SS 347 High-temperature stability and weldability Power Plants, Refineries

Stainless Steel 904L is specifically developed for highly corrosive environments where superior resistance to acids and chlorides is required. While Stainless Steel 316 Pipe Fittings are widely used for marine and chemical applications, Stainless Steel 347 Pipe Fittings are typically selected for elevated-temperature service. Grade 904L is often preferred when maximum corrosion resistance and long-term reliability are the primary requirements.

Available Finishes & Surface Treatments

Finish Benefits
Pickled Removes scale and improves corrosion resistance
Passivated Enhances the protective oxide layer
Polished Improves cleanliness and surface appearance
Mill Finish Suitable for standard industrial applications

Proper finishing helps improve corrosion performance, surface quality, and long-term durability in demanding industrial environments.

Serving Industrial Pipe Fitting Requirements

Gururaj Infradesigns supplies Stainless Steel 904L Pipe Fittings in various sizes, schedules, and specifications to support industrial piping requirements. Our products are supplied to EPC contractors, engineering companies, fabricators, and process industries requiring dependable piping components for critical applications.

As a trusted supplier, we focus on providing consistent quality, technical support, and timely deliveries to meet project schedules and operational requirements.

Our Commitment to Quality

At Gururaj Infradesigns, quality remains an important part of our manufacturing and supply process. All pipe fittings undergo inspection for dimensional accuracy, workmanship, and material compliance before dispatch.

As an ISO Certified Company, we are committed to supplying reliable piping components that meet industrial expectations for quality, consistency, and performance.

FAQs

Stainless Steel 904L Pipe Fittings are high-alloy stainless steel piping components designed for highly corrosive environments involving acids, chlorides, and aggressive process media.

Grade 904L contains higher levels of nickel, molybdenum, and copper, providing superior resistance to acids and chloride-induced corrosion compared to Stainless Steel 316.

These fittings are widely used in chemical processing plants, fertilizer industries, offshore projects, power generation facilities, pulp and paper mills, and pharmaceutical manufacturing units.

Yes. Depending on application requirements, Stainless Steel 904L Pipe Fittings can be supplied in both seamless and welded construction across various sizes and schedules.

Selection depends on factors such as chemical exposure, operating pressure, temperature, and piping specifications. Choosing the correct fitting type and grade helps ensure long-term reliability and efficient system performance.

Need Technical Assistance?

Selecting the right pipe fitting grade depends on factors such as chemical exposure, operating temperature, pressure conditions, and service environment. Choosing the appropriate material can significantly improve system reliability, corrosion resistance, and operational efficiency. Our team can assist in selecting the most suitable fitting grade, size, and specification based on your application requirements. We work closely with engineers, fabricators, EPC contractors, and industrial buyers to provide practical guidance and dependable piping solutions for demanding industrial projects.
