Alloy Steel WP22 Pipe Fittings Manufacturer, Supplier in India

Gururaj Infradesigns is a trusted Alloy Steel WP22 Pipe Fittings Manufacturer in India offering ASTM A234 WP22 / ASME SA234 fittings in seamless, welded, and fabricated forms for power plants, refineries, petrochemical facilities, and high-temperature pressure piping applications.

Alloy Steel WP22 Pipe Fittings Manufacturer in India

Alloy Steel WP22 Pipe Fittings are chromium-molybdenum alloy fittings specifically developed for high-temperature and high-pressure service applications. Known for their excellent creep resistance, oxidation resistance, and long-term thermal stability, these fittings are widely used in power plants, refineries, petrochemical facilities, and heavy process industries. Gururaj Infradesigns is a trusted ASTM A234 WP22 Pipe Fittings Manufacturer in India, supplying high-quality fittings designed to perform reliably in demanding operating environments.

Our product range includes elbows, tees, reducers, pipe caps, stub ends, crosses, and custom bends available in seamless, welded, and fabricated construction. Manufactured in accordance with international standards, ASTM A234 WP22 Pipe Fittings provide dependable performance where conventional materials may not withstand prolonged exposure to heat and pressure.

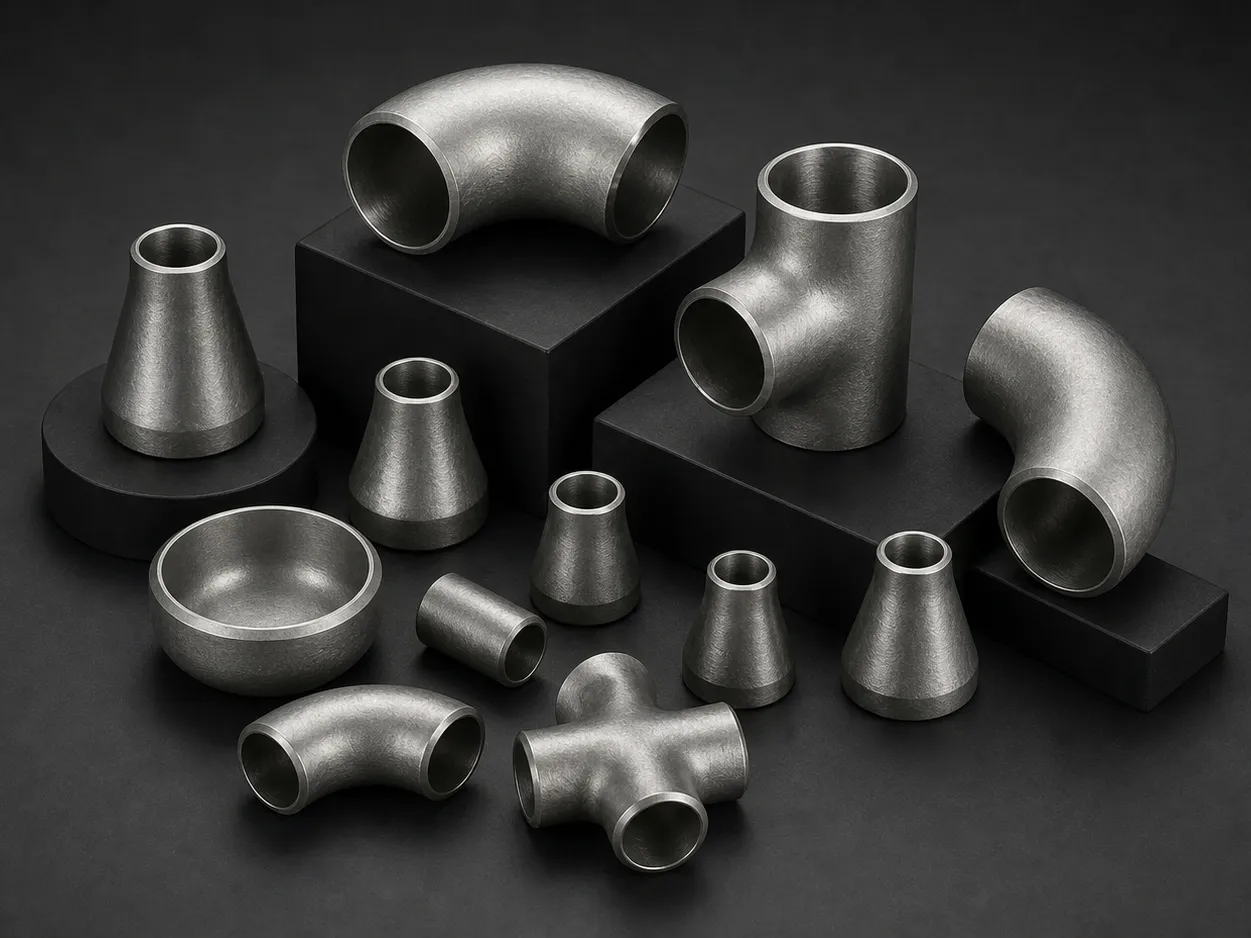

ASTM A234 WP22 Alloy Steel Pipe Fittings for High Temperature Pressure Applications

Understanding ASTM A234 WP22 Pipe Fittings

ASTM A234 WP22 is a chromium-molybdenum alloy steel grade containing approximately 2.25% chromium and 1.00% molybdenum. This alloy composition provides excellent resistance to oxidation, sulfidation, creep deformation, and thermal fatigue. These characteristics make WP22 Pipe Fittings particularly suitable for elevated-temperature service in critical industrial applications.

As part of our comprehensive range of Alloy Steel Pipe Fittings, ASTM A234 WP22 fittings are commonly used in steam systems, refinery process piping, heat exchangers, and pressure piping systems where durability and long service life are essential.

ASTM A234 WP22 Pipe Fittings Specifications

Parameter	Details
Product	Alloy Steel WP22 Pipe Fittings
Specifications	ASTM A234 / ASME SA234
Dimension Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.28	Short Radius Elbows & Return Bends
MSS SP-43	Low Pressure Corrosion Resistant Applications
Product Types	Elbow, Tee, Reducer, Cap, Stub End, Cross
General Size Range	1/8" NB to 48" NB
Standard Size Range	½" NB to 24" NB
DN Range	DN6 – DN100
Seamless Size	1/2" – 10"
Welded Size	1/2" – 48"
Type	Seamless / Welded / Fabricated
Thickness	Sch 5S, 10S, 40S, 80S, 160S, XXS
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Equivalent Grades of ASTM A234 WP22 Pipe Fittings

Grade	ASTM / ASME	UNS Number	WNR	DIN Equivalent
WP22	ASTM A234 / ASME SA234	UNS K21590	1.7380	10CrMo9-10

Equivalent grade references help engineers and buyers identify compatible materials across different international standards and project specifications, simplifying material selection for global projects.

Benefits of Using Alloy Steel WP22 Pipe Fittings

Excellent High-Temperature Strength

ASTM A234 WP22 Pipe Fittings retain their strength and structural integrity even during prolonged exposure to elevated temperatures. This makes them highly suitable for steam systems, refinery units, and thermal processing applications.

Superior Creep Resistance

The chromium-molybdenum composition provides excellent resistance to creep deformation caused by continuous stress and heat. This ensures dependable long-term performance in critical services.

Enhanced Oxidation Resistance

WP22 fittings offer improved resistance to oxidation and scaling compared to lower alloy grades. Their ability to withstand harsh thermal environments helps extend service life.

Reliable Performance Under Pressure

These fittings are designed to handle high-pressure applications while maintaining mechanical stability. This makes them suitable for demanding industrial piping systems.

Reduced Maintenance Requirements

Their durability and resistance to thermal degradation contribute to fewer replacements, reduced downtime, and lower lifecycle costs.

Chemical Composition of ASTM A234 WP22 Pipe Fittings

Element	Composition (%)
Carbon	0.05 – 0.15
Manganese	0.30 – 0.60
Phosphorus	0.025 Max
Sulfur	0.025 Max
Silicon	0.50 Max
Chromium	1.90 – 2.60
Molybdenum	0.87 – 1.13

WP22 is commonly referred to as a 2.25Cr–1Mo alloy steel, valued for its excellent combination of heat resistance and mechanical strength.

Property	Value
Tensile Strength	415 MPa Min
Yield Strength	205 MPa Min
Elongation	20% Min
Hardness	121 – 163 HB

Common Applications of Alloy Steel WP22 Pipe Fittings

Power Generation Plants

Alloy Steel WP22 Pipe Fittings are extensively used in steam pipelines, superheater systems, reheaters, and boiler applications operating under high temperatures and pressure. Their excellent creep resistance ensures safe and reliable long-term service.

Oil Refineries

Refinery process units handling elevated-temperature hydrocarbons frequently utilize ASTM A234 WP22 Pipe Fittings. Their oxidation resistance and mechanical stability help maintain operational efficiency in demanding environments.

Petrochemical Industries

These fittings are suitable for process piping systems exposed to thermal cycling and aggressive operating conditions. Their durability contributes to improved plant reliability and reduced maintenance.

Heat Exchanger Systems

WP22 fittings are commonly used in condensers, heat exchangers, and thermal transfer equipment where consistent performance under prolonged heat exposure is essential.

Industrial Processing Facilities

Various manufacturing and process industries rely on WP22 fittings for critical piping applications requiring dependable high-temperature performance and extended service life.

ASTM A234 WP22 vs Other Alloy Steel Grades

Choosing the right alloy steel grade depends on operating temperature, pressure conditions, and service severity. ASTM A234 WP22 offers enhanced performance compared to lower alloy grades while remaining a cost-effective solution for many industrial applications.

Property	ASTM A234 WP22	ASTM A234 WP11
Chromium Content	1.90 – 2.60%	1.00 – 1.50%
Molybdenum Content	0.87 – 1.13%	0.44 – 0.65%
High-Temperature Resistance	Very Good	Good
Oxidation Resistance	Very Good	Good
Pressure Capability	High	Moderate
Typical Applications	Refineries, High-Pressure Systems	Boilers, Steam Systems
Relative Cost	Moderate	Economical

ASTM A234 WP22 Pipe Fittings are often selected for more demanding refinery and pressure applications requiring improved oxidation resistance and creep strength. In comparison, ASTM A234 WP11 Pipe Fittings provide a more economical solution for conventional boiler and utility steam systems where service conditions are less severe.

Available Surface Finishes for WP22 Pipe Fittings

Finish	Benefits
Black Finish	Standard industrial finish suitable for most applications
Shot Blasted	Improves surface cleanliness and appearance
Pickled	Removes scale and contaminants
Painted	Protects against corrosion during storage and transportation

Proper finishing enhances product integrity and ensures installation readiness.

Supporting Industrial Pipe Fitting Requirements

Gururaj Infradesigns supplies Alloy Steel WP22 Pipe Fittings in multiple sizes, schedules, and configurations to support power generation, refinery, petrochemical, and industrial projects. Our products are supplied to EPC contractors, fabricators, engineering consultants, and industrial buyers across India.

With a focus on quality, technical expertise, and timely delivery, we help customers source dependable alloy steel piping components tailored to their project requirements.

Quality Assurance for ASTM A234 WP22 Pipe Fittings

Quality remains an integral part of our manufacturing and supply process. Every fitting undergoes inspection for dimensional accuracy, material conformity, and workmanship before dispatch.

As an ISO Certified Company, we are committed to delivering reliable piping solutions that consistently meet industrial quality standards and customer expectations.

FAQs

ASTM A234 WP22 is a chromium-molybdenum alloy steel grade used to manufacture buttweld pipe fittings intended for elevated-temperature and high-pressure service applications.

These are buttweld fittings manufactured from ASTM A234 WP22 alloy steel and are widely used in refineries, power plants, petrochemical facilities, and thermal processing systems.

The "WP" designation stands for wrought pipe fittings, while "22" refers to the alloy composition containing approximately 2.25% chromium and 1% molybdenum.

WP22 contains higher chromium and molybdenum content than WP11, providing improved oxidation resistance, creep strength, and suitability for more demanding operating conditions.

Yes. We supply ASTM A234 WP22 Pipe Fittings across Mumbai, Chennai, Ahmedabad, Pune, Vadodara, Hyderabad, Bengaluru, and other major industrial cities in India.

Need Technical Assistance?

Selecting the appropriate alloy steel grade requires evaluating operating temperatures, pressure ratings, and process requirements. Choosing the correct fitting material can significantly improve equipment reliability, efficiency, and service life. Our team can assist in selecting the most suitable WP22 fitting type, size, and specification based on your project requirements. We work closely with engineers, EPC contractors, consultants, and industrial buyers to provide practical guidance and dependable piping solutions for critical industrial applications.
